4K

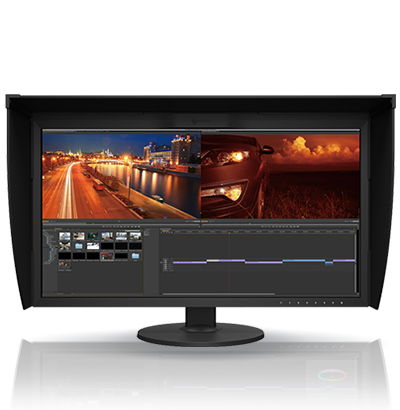

CG319X
| Model Variations | CG319X-BK |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | Wide-Gamut LED |
| Size | 31.1" / 78.9 cm |
| Native Resolution | 4096 x 2160 (17:9 aspect ratio) |
| Viewable Image Size (H x V) | 698.0 x 368.1 mm |
| Pixel Pitch | 0.170 x 0.170 mm |
| Pixel Density | 149ppi |
| Grayscale Tones | DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand tones) |
| Display Colors | DisplayPort, HDMI: 1.07 billion from 24-bit palette |
| Viewing Angles (H / V, typical) | 178°, 178° |
| Brightness (typical) | 350 cd/m2 |
| Contrast Ratio (typical) | 1500:1 |
| HDR Gamma | HLG, PQ curve |
| Response Time (typical) | 9 ms (Gray-to-gray) |
| Color Gamut (typical) | Adobe RGB: 99%, DCI-P3: 98% |
| Video Signals | |
| Input Terminals | DisplayPort x 2 (HDCP 1.3), HDMI x 2 (Deep Color, HDCP 2.2 / 1.4) |
| Digital Scanning Frequency (H / V) | DisplayPort: 25.0 - 137 kHz, 23 - 61 Hz ` HDMI: 15 - 136 kHz, 23 - 61 Hz |
| USB | |
| Upstream | USB 3.1 Gen 1: Type-B |
| Downstream | USB 3.1 Gen 1: Type-A x 3 (Battery Charging 10.5 W max. x1) |
| Power | |
| Power Requirements | AC 100 - 240 V, 50 / 60 Hz |
| Maximum Power Consumption | 140 W |
| Typical Power Consumption | 52 W |
| Power Save Mode | 1.2 W or less |
| Standby Mode | 1.2 W or less |
| Built-in Calibration Sensor | Yes |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Preset Modes | Color Mode (BT.2020, BT.709, DCI, PQ_DCI, PQ_BT.2100, HLG_BT.2100, Adobe RGB, sRGB, Calibration) |
| Color Mangement Software ColorNavigator 7 |
Supported |
| Monitor Management Software ColorNavigator NX |
Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | AC power cord, signal cables (DVI-D - DVI-D [dual link supported], Mini DisplayPort - DisplayPort), USB cable, setup guide, EIZO LCD Utility Disk (ColorNavigator software, PDF user's manual), adjustment certificate, ScreenCleaner, monitor hood, quick reference, warranty card |
| Signal Cables | DisplayPort (2 m), Mini DisplayPort - DisplayPort (2 m), HDMI (2 m) |
| Others | AC power cord, USB cable, user's manual - setup guide, adjustment certificate, ScreenCleaner, monitor hood, warranty card |
| Warranty | Five Years Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later. |
WQHD

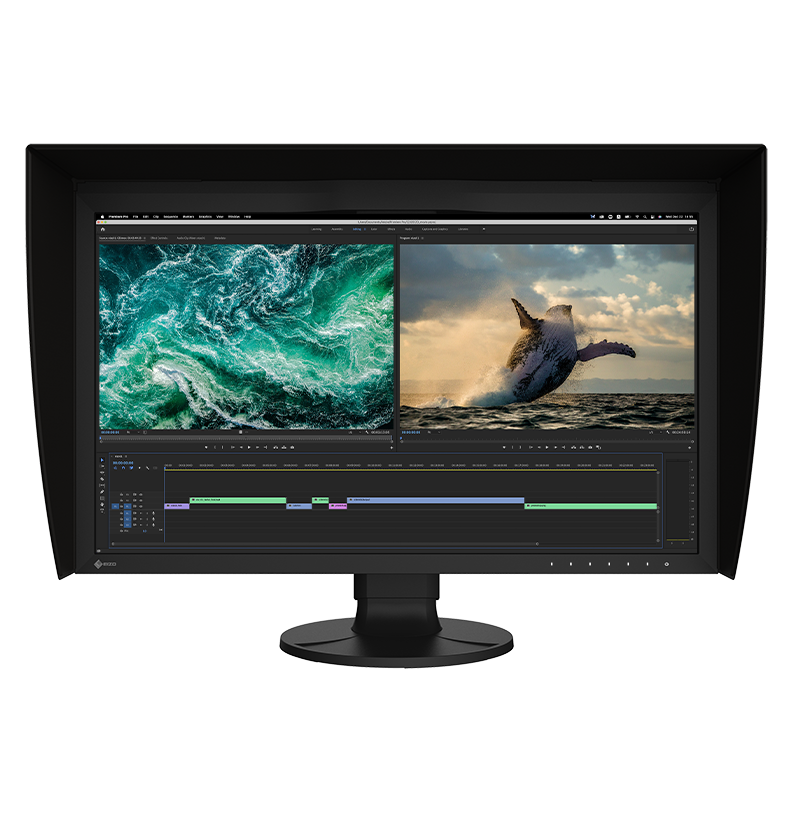

CG2700S
| Model Variations | CG2700S-BK |
|---|---|
| Type Panel | IPS |
| Backlight | Wide-Gamut LED |
| Size | 27" / 68.5 cm |
| Native Resolution | 2560 x 1440 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 596.7 x 335.7 mm |
| Pixel Pitch | 0.233 x 0.233 mm |
| Pixel Density | 109ppi |
| Display Colors | 1.07 billion colours, 10-bit display (from a palette of 278 trillion, 16-bit LUT) |
| Viewing Angles (H / V, typical) | 178°, 178° |
| Brightness (typical) | 400 cd/m |
| Contrast Ratio (typical) | 1600:1 |
| HDR Gamma | HLG, PQ curve |
| Response Time (typical) | 19 ms (Gray-to-gray) |
| Wide Gamut Coverage (typical) | Adobe RGB: 99%, DCI-P3: 98% |
| Video Signals | |
| Input Terminals | USB Type-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (Deep Color, HDCP 1.4) |
| Digital Scanning Frequency (H / V) | USB Type-C, DisplayPort, DVI: 26 - 89 kHz, 23 - 61 Hz HDMI: 15 - 89 kHz, 23 - 61 Hz |
| USB | |
| Upstream | USB 3.1 Gen 1: Type-C (DisplayPort Alt Mode, Power Delivery Source 92 W max.), Type-B |
| Downstream | USB 3.1 Gen 1: Type-A x 2 USB 2.0: Type-A x 2 |
| USB LAN Adapter | RJ-45 (1000BASE-T) |
| Power | |
| Power Requirements | AC 100 - 240 V, 50 / 60 Hz |
| Maximum Power Consumption | 187 W |
| Typical Power Consumption | 17 W |
| Power Save Mode | 0.5 W or less |
| Standby Mode | 0.5 W or less |
| Built-in Calibration Sensor | Yes |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Preset Modes | Colour Mode (User, BT.2020, BT.709, DCI-P3, PQ_DCI-P3, HLG_BT.2100, Adobe RGB, sRGB, CAL, SYNC_SIGNAL) |
| Color Mangement Software ColorNavigator 7 | Supported |
| Signal Cables | USB Type-C (2 m), HDMI (2 m) |
| Others | AC power cord, USB cable, adjustment certificate, setup guide, ScreenCleaner, monitor hood, warranty card |
| Warranty | Five Years Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later. |
FHD

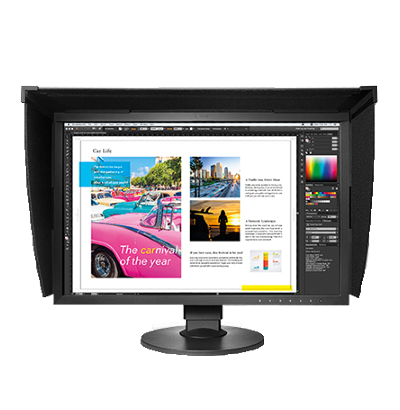

CG2420
| Model Variations | CG2420-BK |
|---|---|
| Type Panel | IPS |
| Backlight | Wide-Gamut LED |
| Size | 24.1" / 61.1 cm |
| Native Resolution | 1920 x 1200 (16:10 aspect ratio) |
| Viewable Image Size (H x V) | 518.4 x 324.0 mm |
| Pixel Pitch | 0.270 x 0.270 mm |
| Pixel Density | 94ppi |
| Grayscale Tones | DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand tones) DVI: 256 tones (a palette of 65 thousand tones) |
| Display Colors | DisplayPort, HDMI: 1.07 billion from a palette of 278 trillion DVI: 16.77 million from a palette of 278 trillion |
| Viewing Angles (H / V, typical) | 178°, 178° |
| Brightness (typical) | 400 cd/m2 |
| Recommended Brightness for Calibration | 120 cd/m2 or less |
| Contrast Ratio (typical) | 1500:1 |
| Response Time (typical) | 10 ms (Gray-to-gray) |
| Color Gamut (typical) | Adobe RGB: 99%, DCI-P3: 98% |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP 1.3), HDMI (Deep Color, HDCP 1.4), DVI-D (HDCP 1.4) |
| Digital Scanning Frequency (H / V) | DisplayPort, DVI: 26 - 78 kHz, 24 - 61 Hz HDMI: 15 - 78 kHz, 24 - 61 Hz |
| USB | |
| Upstream | USB 3.0 Gen 1: Type-B |
| Downstream | USB 3.0 Gen 1: Type-A x 3 (Battery Charging 10.5 W max. x1) |
| Power | |
| Power Requirements | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 20W |
| Maximum Power Consumption | 79W |
| Power Save Mode | 0.7W or less |
| Standby Mode | 0.6W or less |
| Built-in Calibration Sensor | Yes |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Preset Modes | Color Mode (Custom, Adobe RGB, sRGB, Calibration) |
| Monitor Management Software ColorNavigator NX | Supported |
| Signal Cables | DisplayPort (2 m), HDMI (2 m) |
| Others | AC power cord, USB cable, Setup guide, EIZO LCD Utility Disk (ColorNavigator software, PDF user's manual), Adjustment certificate, ScreenCleaner, Monitor hood, Quick reference, Warranty card |
| Warranty | Five Years 2 5 Zero bright sub-pixels for six months from date of purchase |
